ArkHost Hetzner VPS Module

WHMCS server module for Hetzner Cloud VPS management.

Features

Core

• VPS lifecycle: create, suspend, unsuspend, terminate
• Server control: start, stop, restart, shutdown
• Automatic provisioning on payment

Advanced

• Floating IP management with reverse DNS
• Backup creation and restoration
• Firewall rule management
• Performance graphs (CPU, network, disk I/O)
• Rescue mode with temporary passwords
• ISO mounting
• OS reinstallation

Interface

• Bootstrap 4 responsive design
• Multiple language translations included
• Real-time status updates
• VNC console access

Requirements

• WHMCS 8.9+
• PHP 7.4+
• Hetzner Cloud API token
• cURL extension
• HTTPS connection

Installation

1. Upload files to /path/to/whmcs/modules/servers/ArkHostHetznerVPS/
2. Create server and add it to a server group:
   • Setup → Products/Services → Servers → Create New Group
   • Name: Hetzner Cloud
   • Type: ArkHostHetznerVPS
   • Hostname: localhost
   • Username: Hetzner Project ID (optional)
   • Password: Hetzner Cloud API Token
3. Create products:
   • Setup → Products/Services → Products/Services → Create New Product
   • Type: VPS/Dedicated Server
   • Module: ArkHostHetznerVPS
   • Server Group: Select Hetzner Cloud

Configuration

Module Settings

• Server Type: cx11, cx21, cx31, cx41, cx51 , etc.
• Operating System: ubuntu-20.04, debian-11, etc.
• Datacenter: fsn1, nbg1, hel1, ash, hil
• Backups: On/Off
• Create Floating IP: On/Off

Custom Field (Required)

• Field Name: ArkHostHetznerVPS|VPS ID
• Type: Text Box
• Admin Only: Yes

For ModulesGarden migration, keep existing serverID|Server ID field.

Configurable Options

Create in Setup → Products/Services → Configurable Options:

1. Floating IP Add-on

• Option Name: Floating IP
• Option Type: Yes/No
• Options:
  • No|None
  • Yes|1 Floating IP

2. Datacenter Selection

• Option Name: datacenter
• Option Type: Dropdown
• Options:
  • fsn1-dc14|Falkenstein, Germany
  • nbg1-dc3|Nuremberg, Germany
  • hel1-dc2|Helsinki, Finland
  • ash-dc1|Ashburn, USA
  • hil-dc1|Hillsboro, USA
  • sin-dc1|Singapore, Singapore

3. Server Type

• Option Name: planid
• Option Type: Dropdown
• Options:
• cpx11|CPX 11 - 2 vCPU, 2 GB RAM, 40 GB Disk, shared
• cpx21|CPX 21 - 3 vCPU, 4 GB RAM, 80 GB Disk, shared
• cpx31|CPX 31 - 4 vCPU, 8 GB RAM, 160 GB Disk, shared
• cpx41|CPX 41 - 8 vCPU, 16 GB RAM, 240 GB Disk, shared
• cpx51|CPX 51 - 16 vCPU, 32 GB RAM, 360 GB Disk, shared
• cax11|CAX11 - 2 vCPU, 4 GB RAM, 40 GB Disk, shared
• cax21|CAX21 - 4 vCPU, 8 GB RAM, 80 GB Disk, shared
• cax31|CAX31 - 8 vCPU, 16 GB RAM, 160 GB Disk, shared
• cax41|CAX41 - 16 vCPU, 32 GB RAM, 320 GB Disk, shared
• ccx13|CCX13 Dedicated CPU - 2 vCPU, 8 GB RAM, 80 GB Disk, dedicated
• ccx23|CCX23 Dedicated CPU - 4 vCPU, 16 GB RAM, 160 GB Disk, dedicated
• ccx33|CCX33 Dedicated CPU - 8 vCPU, 32 GB RAM, 240 GB Disk, dedicated
• ccx43|CCX43 Dedicated CPU - 16 vCPU, 64 GB RAM, 360 GB Disk, dedicated
• ccx53|CCX53 Dedicated CPU - 32 vCPU, 128 GB RAM, 600 GB Disk, dedicated
• ccx63|CCX63 Dedicated CPU - 48 vCPU, 192 GB RAM, 960 GB Disk, dedicated
• cx22|CX22 - 2 vCPU, 4 GB RAM, 40 GB Disk, shared
• cx32|CX32 - 4 vCPU, 8 GB RAM, 80 GB Disk, shared
• cx42|CX42 - 8 vCPU, 16 GB RAM, 160 GB Disk, shared
• cx52|CX52 - 16 vCPU, 32 GB RAM, 320 GB Disk, shared

4. Operating System

• Option Name: osid
• Option Type: Dropdown
• Options:
• lamp|lamp -wordpress|wordpress -jitsi|jitsi -nextcloud|nextcloud
• docker-ce|docker-ce
• gitlab|gitlab
• debian-11|Debian 11
• rocky-8|Rocky Linux 8
• centos-stream-9|CentOS Stream 9
• ubuntu-22.04|Ubuntu 22.04
• prometheus-grafana|prometheus-grafana
• rocky-9|Rocky Linux 9
• wireguard|wireguard
• owncast|owncast
• photoprism|photoprism
• rustdesk|rustdesk
• centos-stream-9|CentOS Stream 9
• debian-11|Debian 11
• rocky-8|Rocky Linux 8
• rocky-9|Rocky Linux 9
• ubuntu-22.04|Ubuntu 22.04
• alma-8|AlmaLinux 8
• alma-9|AlmaLinux 9
• jitsi|jitsi
• owncast|owncast

Client Interface

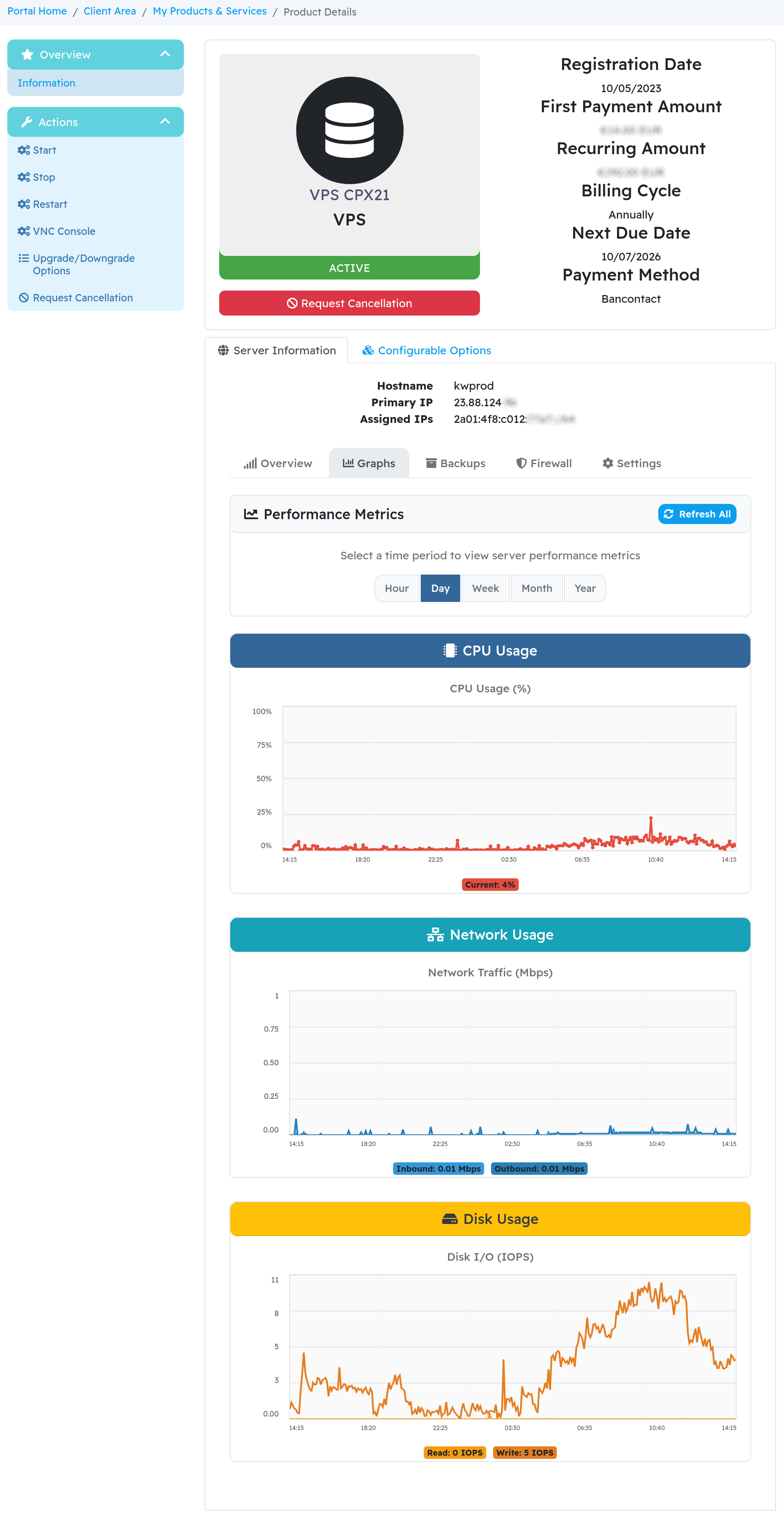

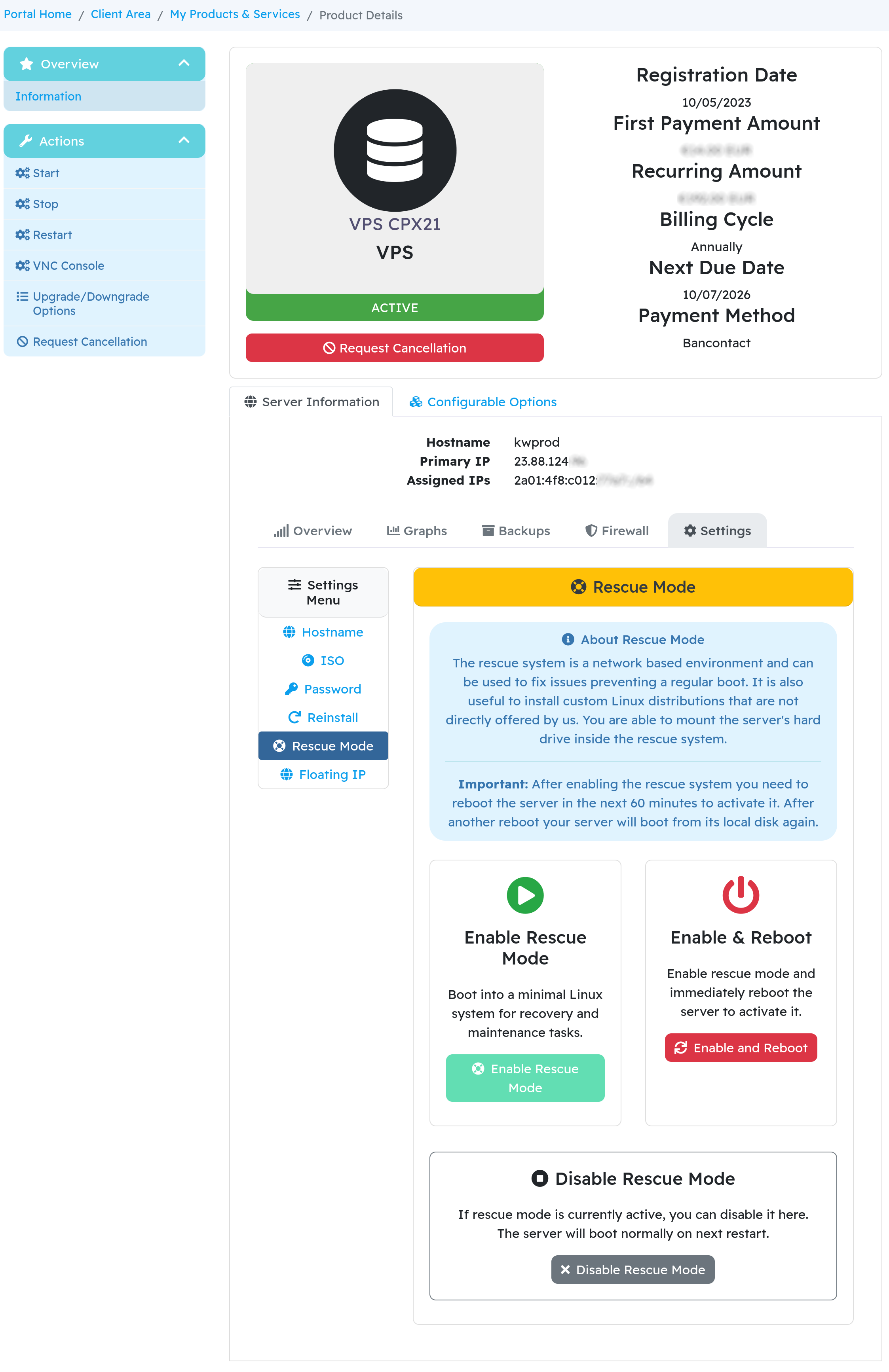

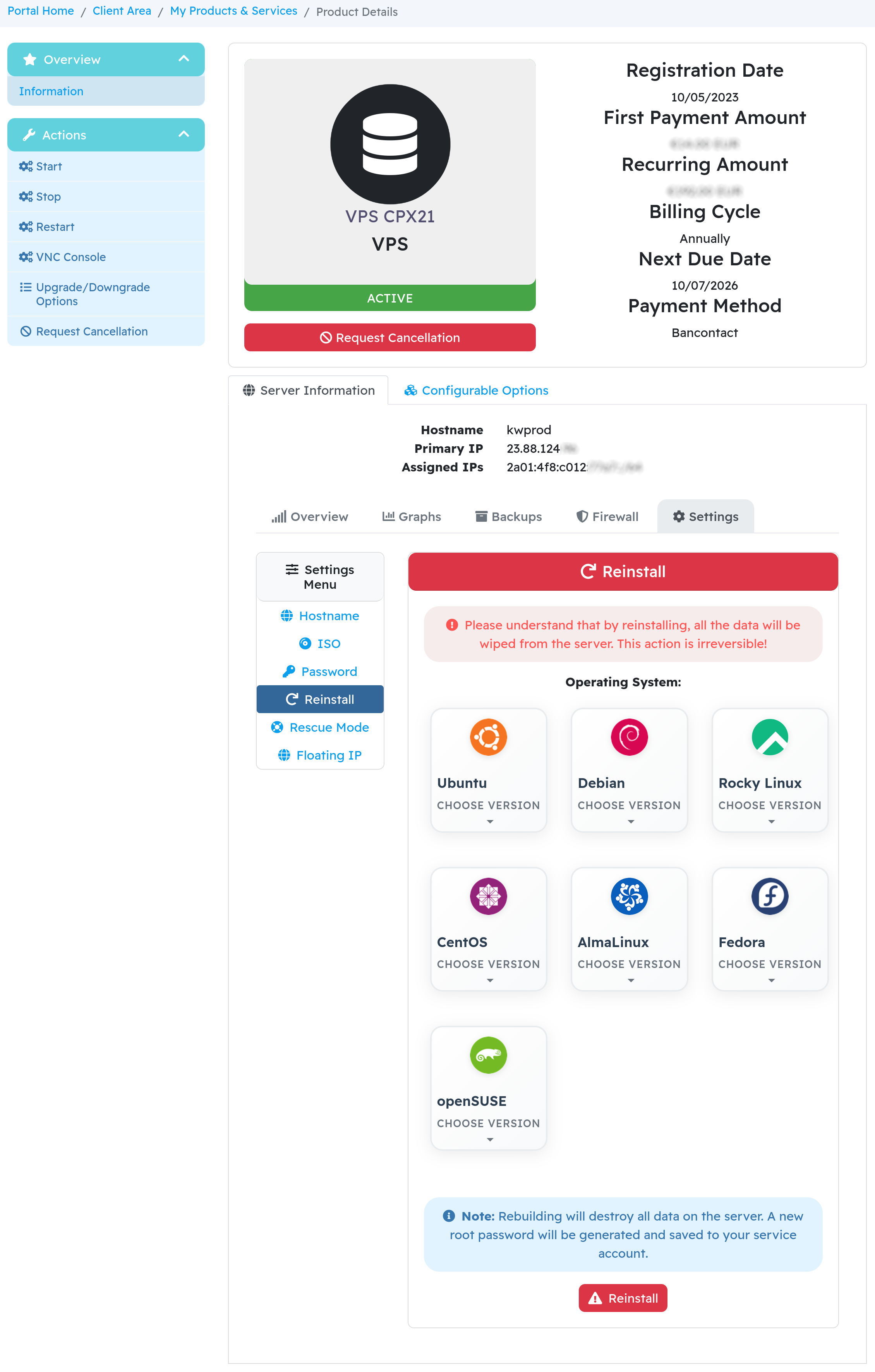

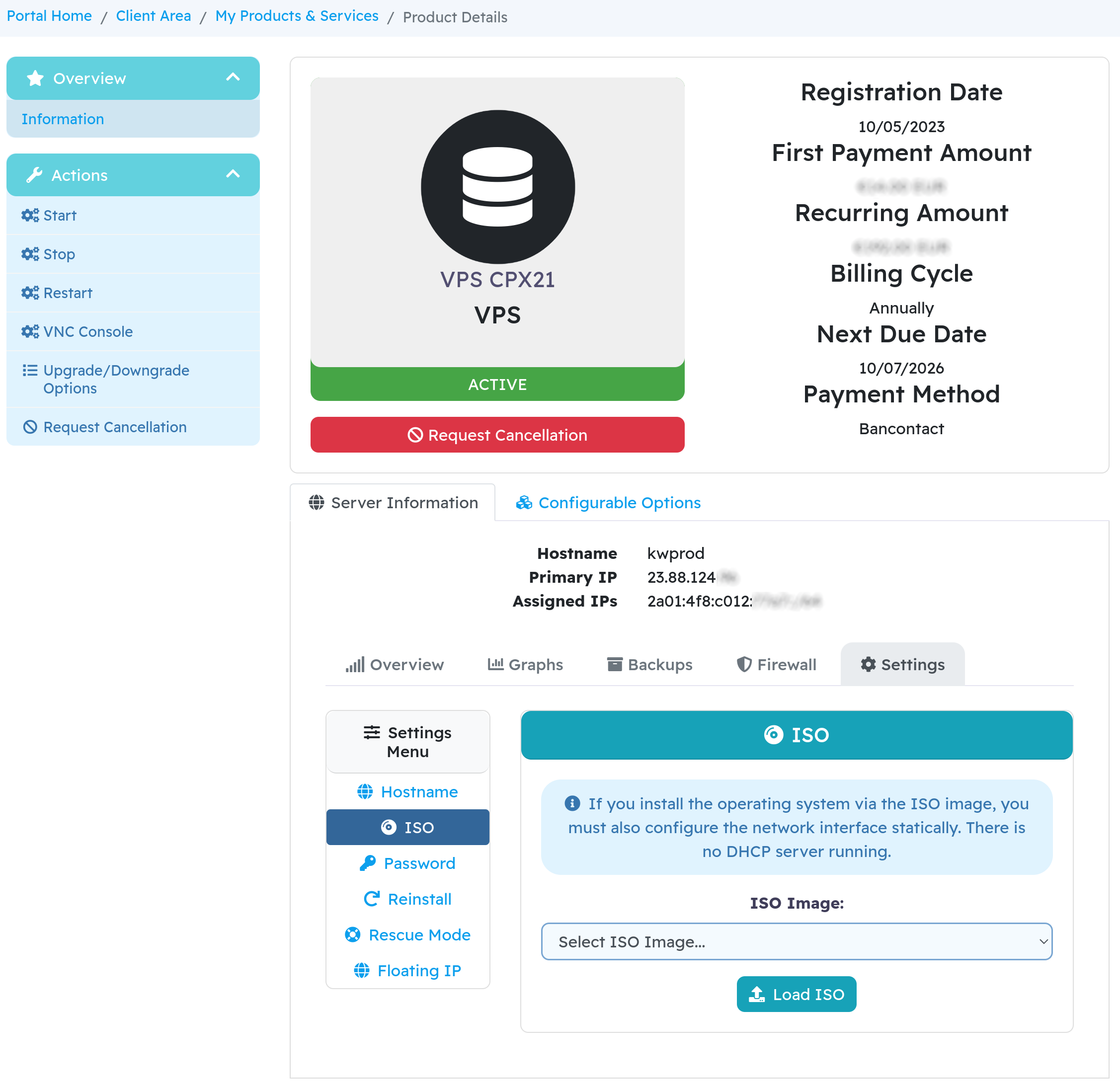

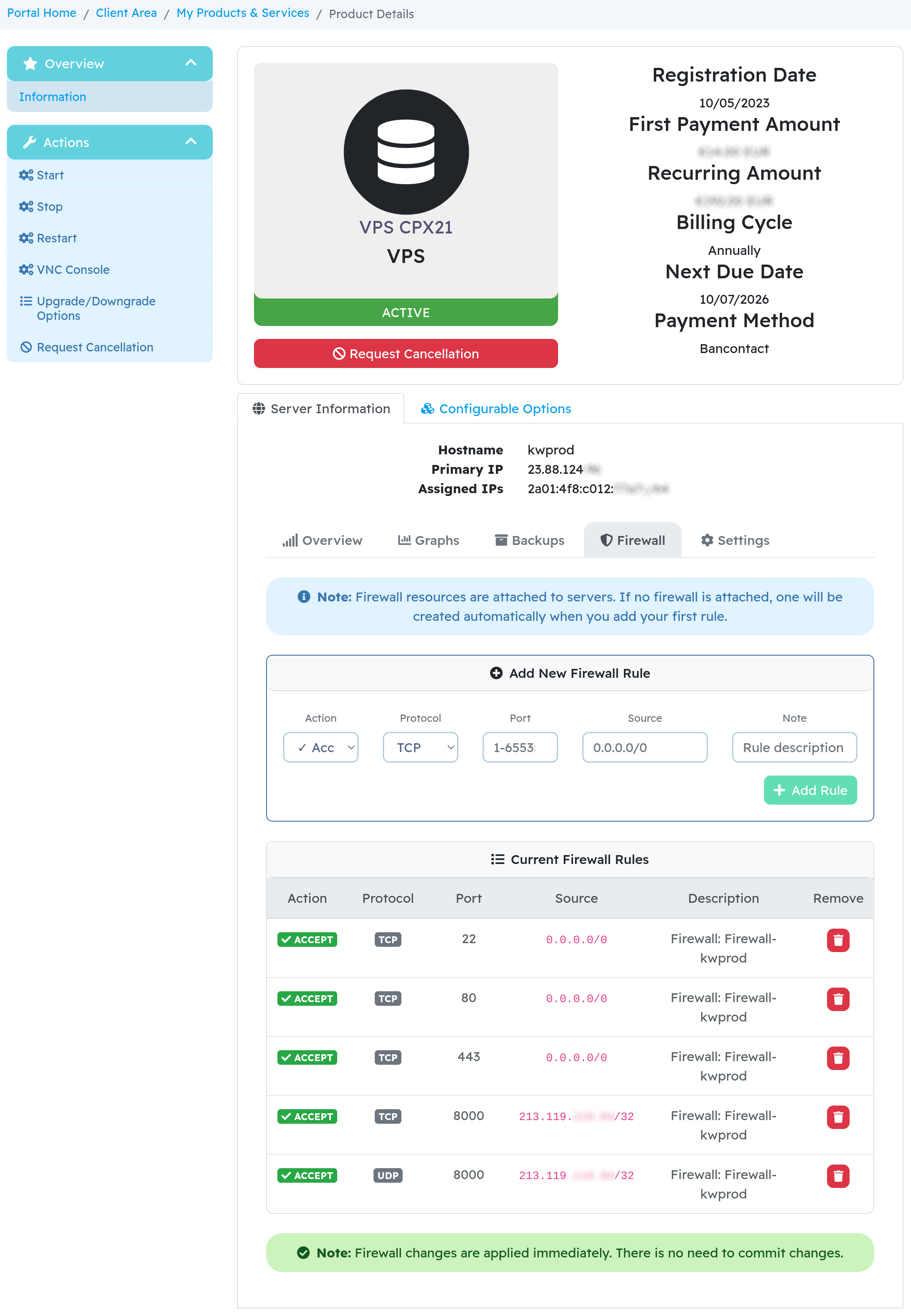

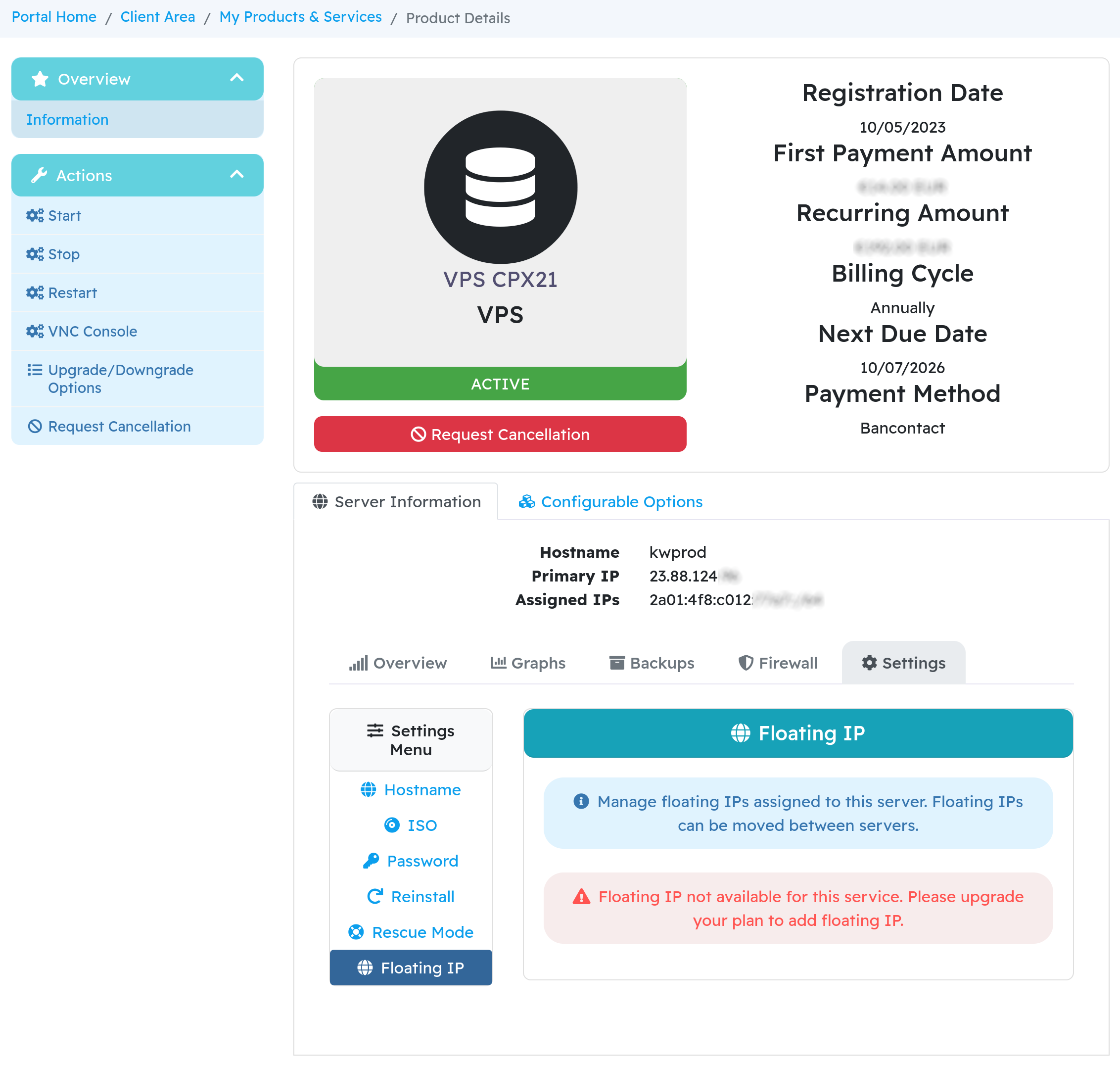

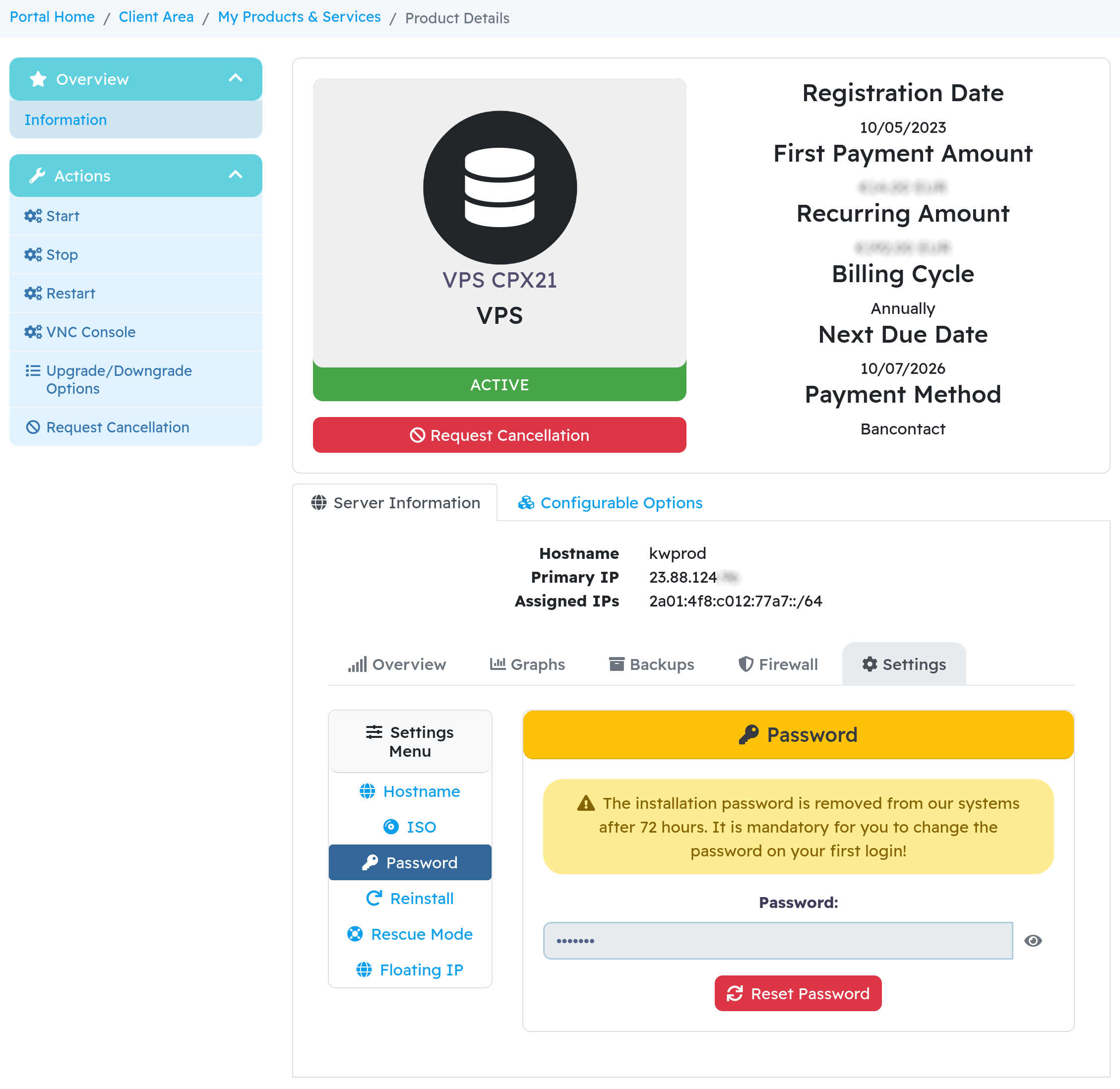

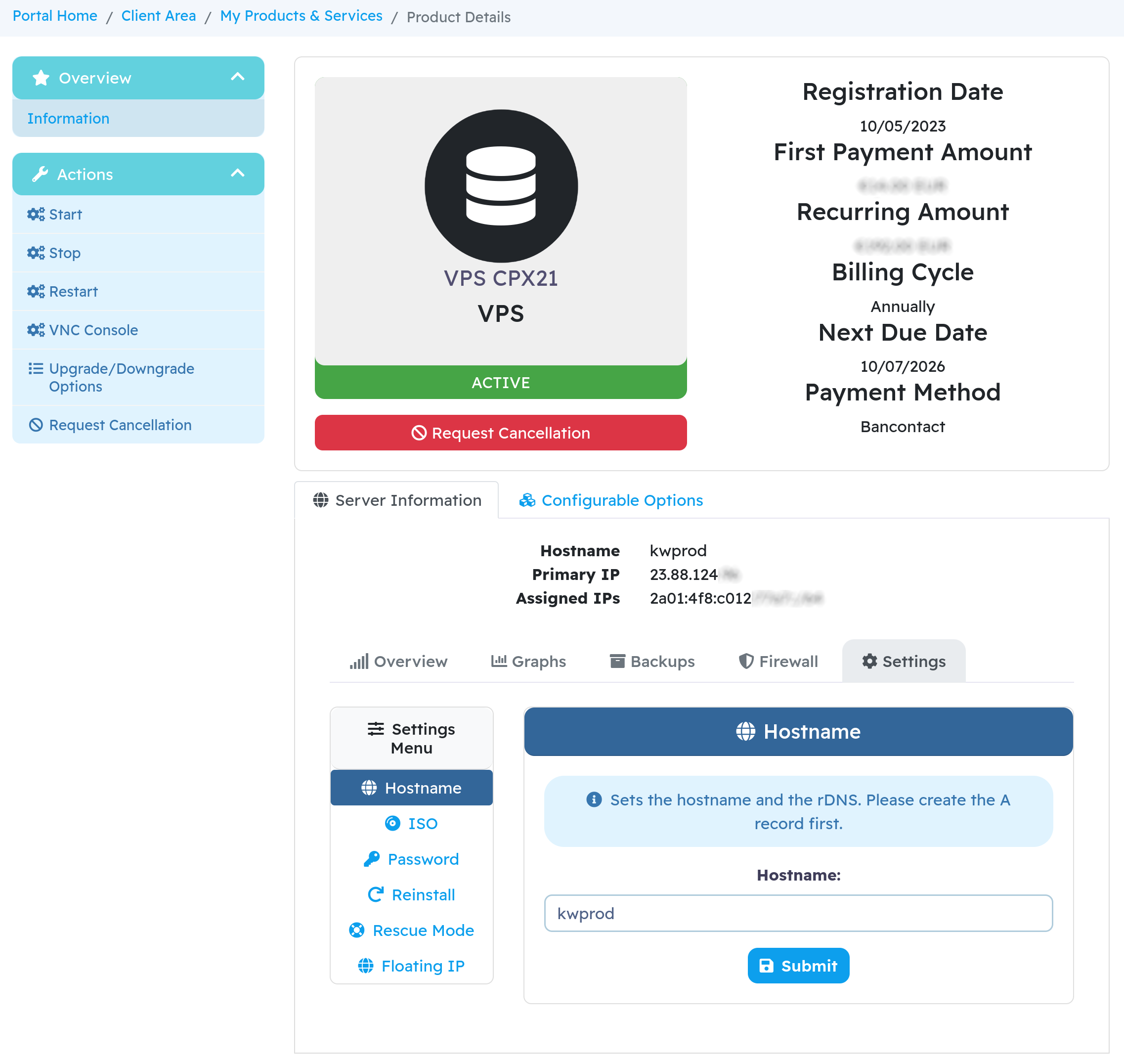

Overview: Server status, information, control buttons Graphs: CPU, network, disk I/O monitoring Backups: Create, restore, delete backups Settings: Hostname, ISO, password reset, reinstall, firewall, rescue mode, floating IP

SSH Key Management

Why no SSH key feature?

Hetzner's API stores SSH keys at the project level, not per-server. In a multi-tenant WHMCS environment, this creates security risks:

• Potential key exposure across customers
• No proper isolation between services
• Complex workarounds that compromise security

Current recommended approach:

1. Use password authentication for initial access
2. Add your SSH key manually: ssh-copy-id root@your-server-ip
3. Secure your server:

sed -i 's/PasswordAuthentication yes/PasswordAuthentication no/' /etc/ssh/sshd_configsystemctl restart sshd

This ensures proper key isolation and security for each customer.

Future development:

We're exploring secure implementations using cloud-init or per-server user data to enable SSH key management while maintaining proper isolation.

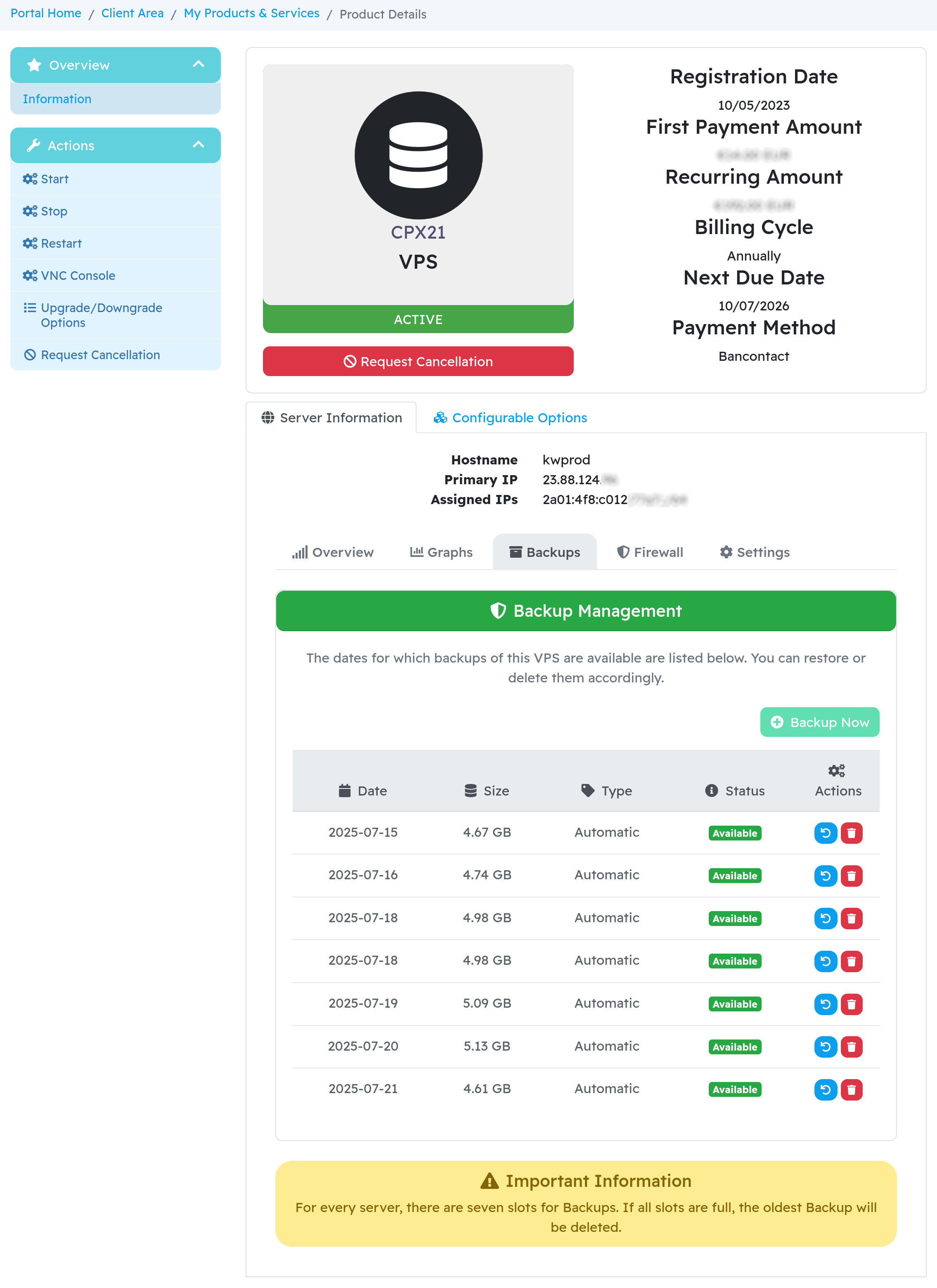

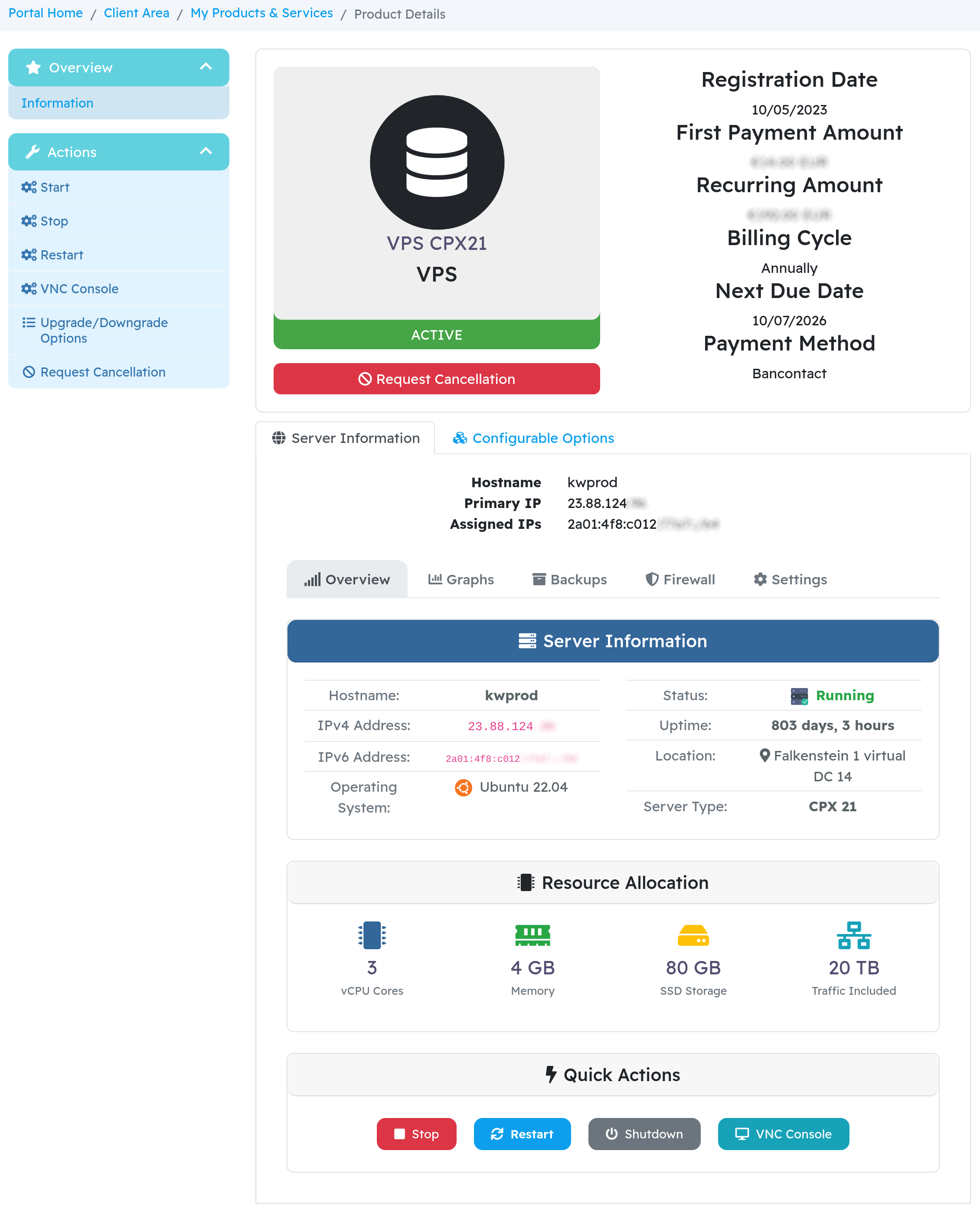

Screenshots

Troubleshooting

API Connection Failed: Check API token in server group settings Server Not Found: Verify VPS ID custom field exists Floating IP Issues: Enable in configurable options

Enable module debugging: Configuration → System Logs → Module Log

Support Policy

This is free, open-source software provided AS-IS.

NO SUPPORT is provided except through paid channels:

• Premium Support: €100/hour (2 hour minimum)
• Email: support@arkhost.com (paid support only)

Before Requesting Support

• English only
• Must provide complete error logs
• Must provide steps to reproduce
• Vague reports like "doesn't work" will be ignored

GitHub Issues

• For documented bugs only
• Requires complete technical information
• Issues lacking proper information will be closed immediately
• This is not a support forum

If you need help with basic installation or configuration, purchase premium support.

License

MIT License - see LICENSE file for details.

Free and open source. Commercial support available.
