WHMCS VPS Management Module - ArkHost VPSAG

A WHMCS server module for VPSAG VPS management with multi-language support.

Note: Originally based on andretunes/whmcs-module-vpsag. Current version has been substantially rewritten.

Features

• VPS provisioning and lifecycle management
• VPS control (start/stop/restart/shutdown)
• Backup management (create/restore/delete)
• Firewall configuration
• OS reinstallation with SSH key injection and post-install scripts
• Resource monitoring with graphs
• VNC console access
• Hostname and rDNS management
• ISO mounting
• 8 language support (English, Dutch, French, German, Italian, Portuguese, Russian, Spanish)
• Responsive client area design

Requirements

• WHMCS 8.9+
• PHP 7.4+
• VPSAG reseller account with API access

Installation

1. Upload the ArkhostVPSAG folder to /modules/servers/ in your WHMCS installation
2. Navigate to Setup > Products/Services > Servers in WHMCS admin
3. Add a new server with:
   • Module: ArkhostVPSAG
   • Hostname: www.vpsag.com
   • Username: Your VPSAG API username
   • Password: Your VPSAG API key
4. Click Test Connection to verify credentials

Product Configuration

Creating a Product

1. Go to Setup > Products/Services > Products/Services
2. Create a new product or edit an existing one
3. Under Module Settings tab:
   • Module Name: ArkhostVPSAG
   • Server Group: Select your VPSAG server group

Configurable Options

The module uses two primary configurable options that are dynamically populated from the VPSAG API:

Option	Config Key	Description
Plan ID	configoption1	VPS plan - dropdown populated from /api/v1/plans showing plan names with prices
OS ID	configoption2	Operating system - dropdown populated from /api/v1/os/plan/{plan_id} based on selected plan

Setting Up Configurable Options

You can override the default product options using WHMCS Configurable Options:

1. Go to Setup > Products/Services > Configurable Options
2. Create a new group and link it to your VPSAG product(s)
3. Add options with these exact names:
   • planid - To allow customers to select different plans
   • osid - To allow customers to select their OS during order

The module checks for configurable options first, then falls back to product-level settings.

Callback URL

For automatic provisioning updates (IP, password delivery), configure your callback URL in VPSAG:

https://yourdomain.com/modules/servers/ArkhostVPSAG/callback.php

The callback handler:

• Validates requests using SHA256 signature verification
• Updates service with username, password, IPs (IPv4/IPv6)
• Sets VPS label to WHMCS {service_id} for easy identification

Module Functions

Client Area Actions

Action	Description
Start/Stop/Restart	Basic power controls
VNC Console	Browser-based console access
Reinstall OS	Fresh install with optional SSH key and post-install script
Reset Root Password	Generate new root password
Hostname/rDNS	Set hostname and reverse DNS
Graphs	View CPU, RAM, disk, network usage over time
Backups	Create, restore, and delete backups
Firewall	Add/remove rules, commit changes
ISO	Mount/unmount ISO images

Admin Actions

Action	Description
Start/Stop/Reboot	Power controls from admin panel
VNC Console	Direct VNC link
Suspend/Unsuspend	Service suspension management
Terminate	Cancel VPS at VPSAG
Change Package	Upgrade to higher plan

Sidebar Buttons

The module adds custom sidebar buttons to the client area:

• Start, Stop, Restart, VNC Console

API Integration

Base URL: https://www.vpsag.com/api/v1/

Authentication headers:

• X_API_USER: API username
• X_API_KEY: API key

The module handles all API communication internally with:

• TLS 1.2 enforcement
• 15-second timeout
• Full request/response logging via WHMCS module log

VPS ID Storage

The VPS ID is stored in WHMCS service properties with key vpsag|VPSAG ID in format VPSAG-{numeric_id}.

Language Customization

Override translations by creating files in:

/modules/servers/ArkhostVPSAG/lang/overrides/{language}.php

Screenshots

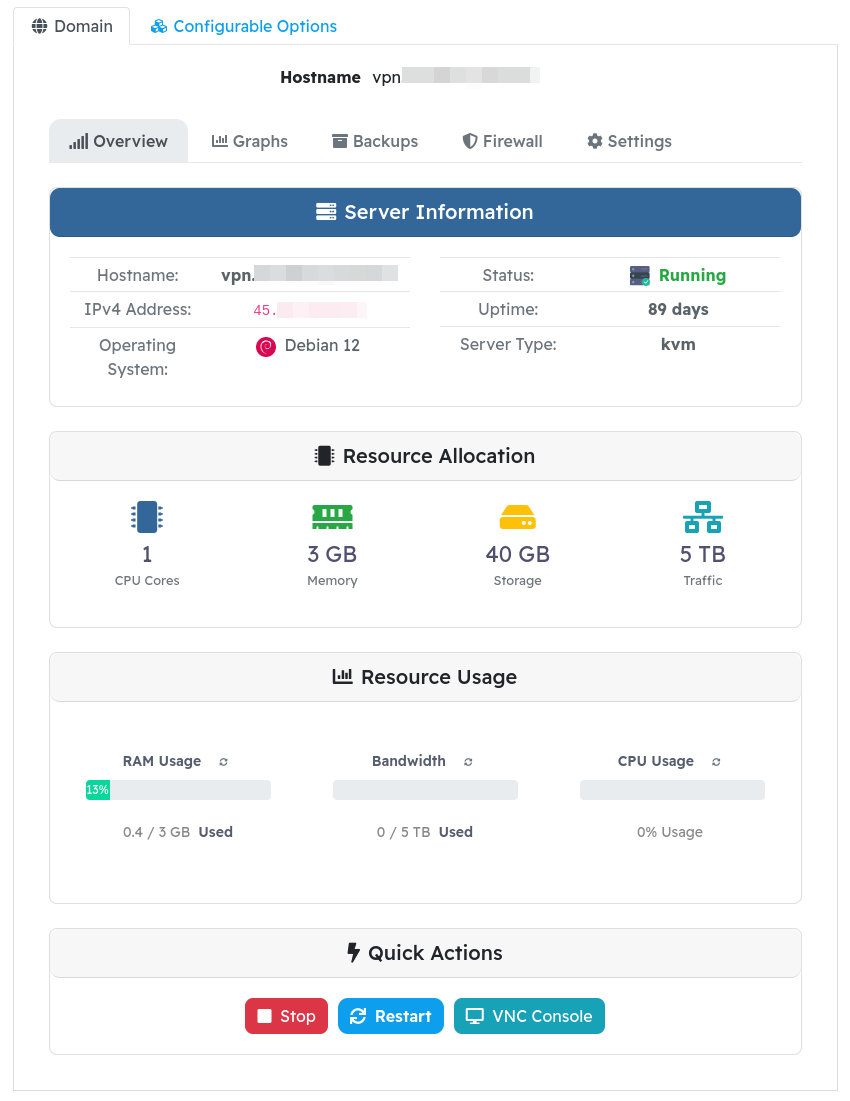

Overview

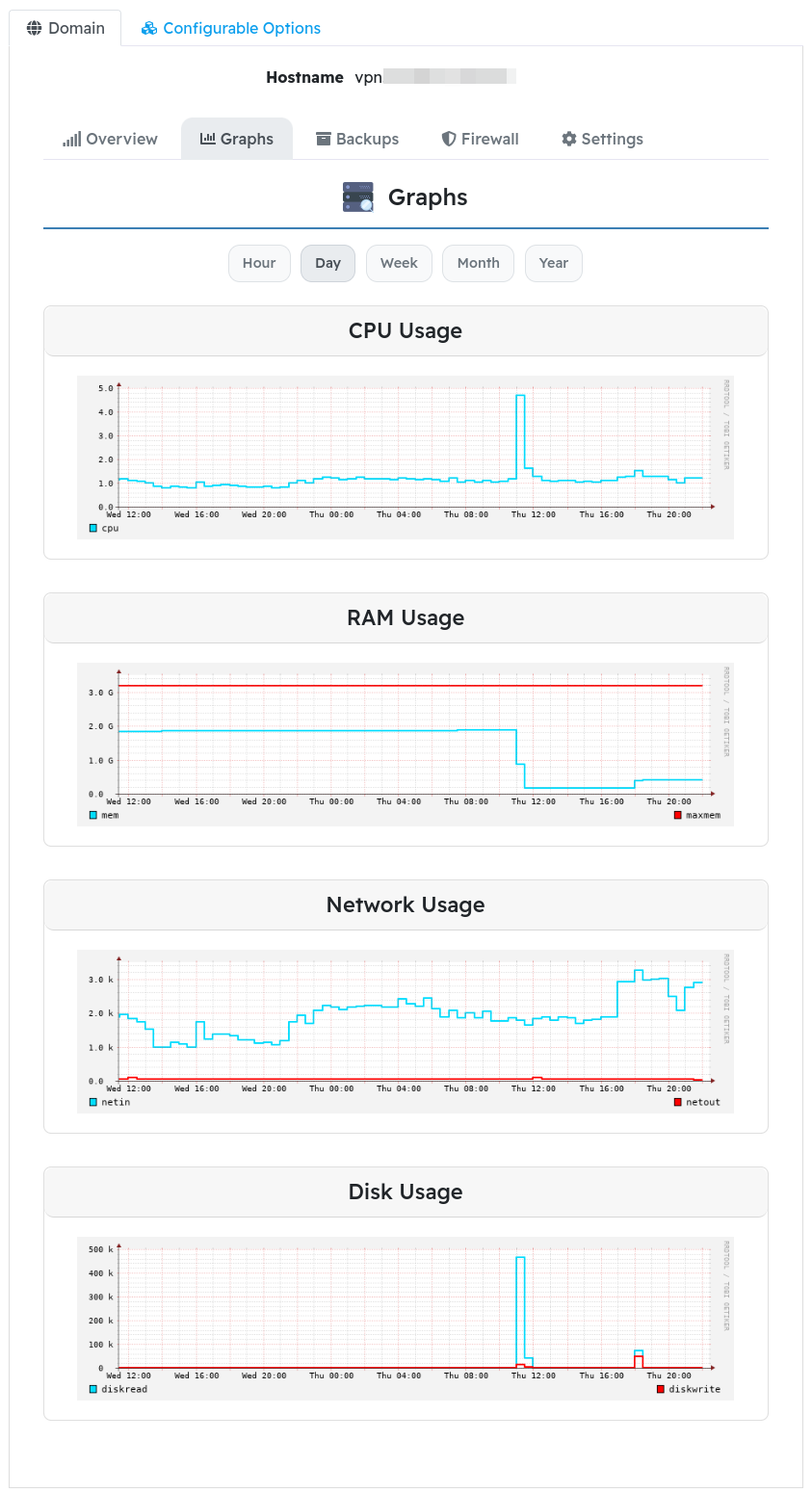

Graphs

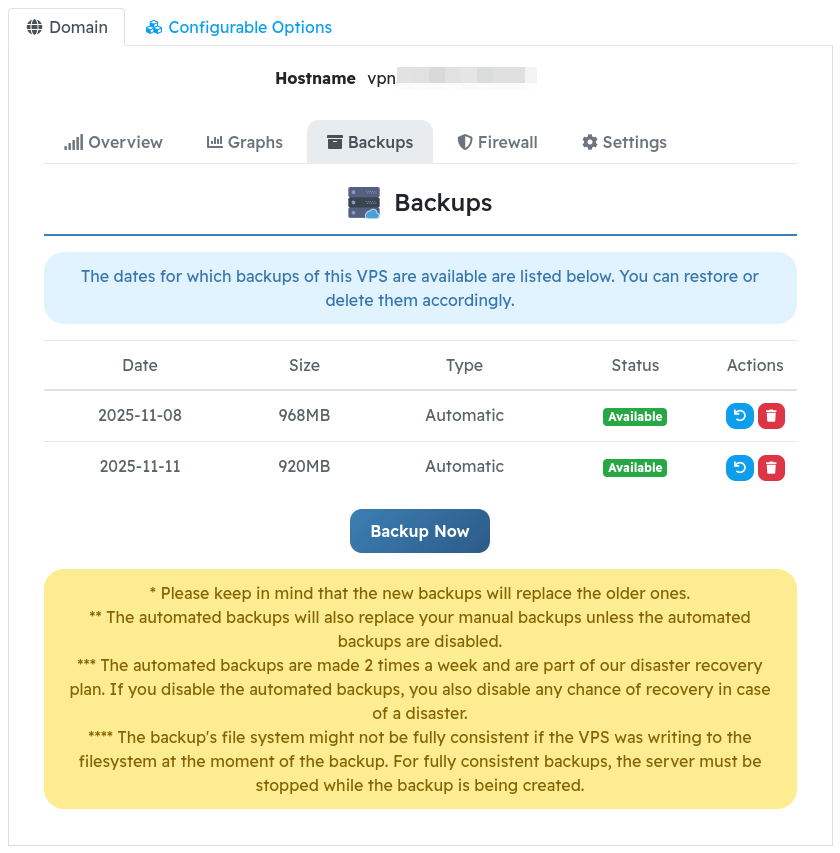

Backups

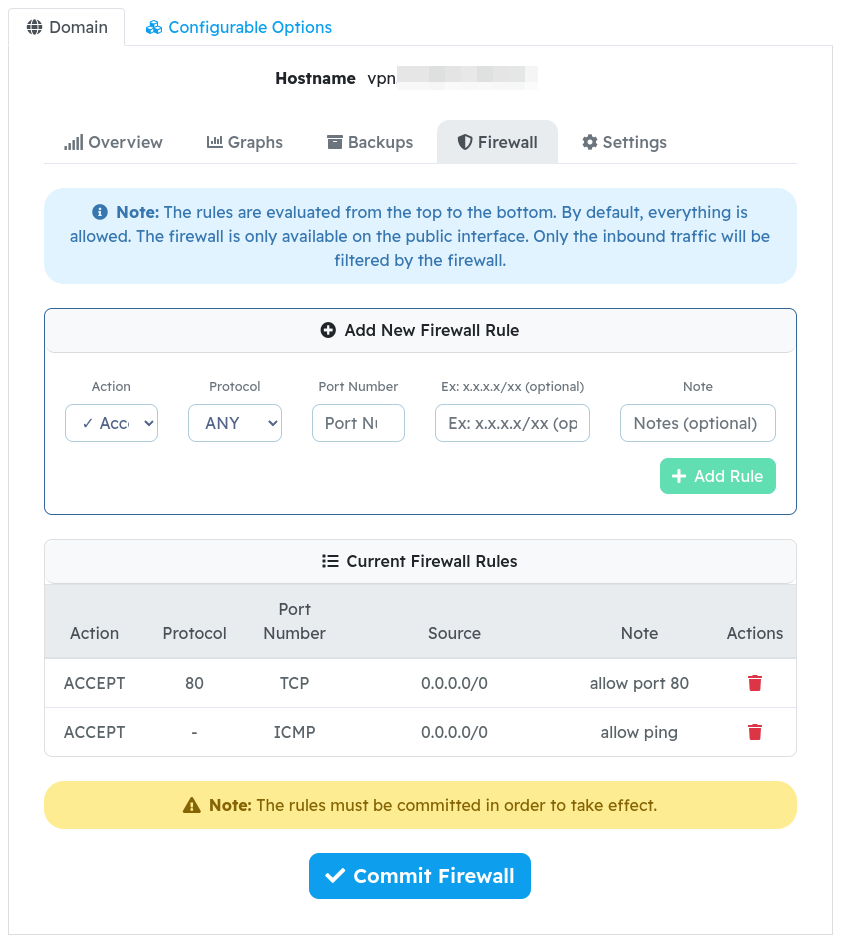

Firewall

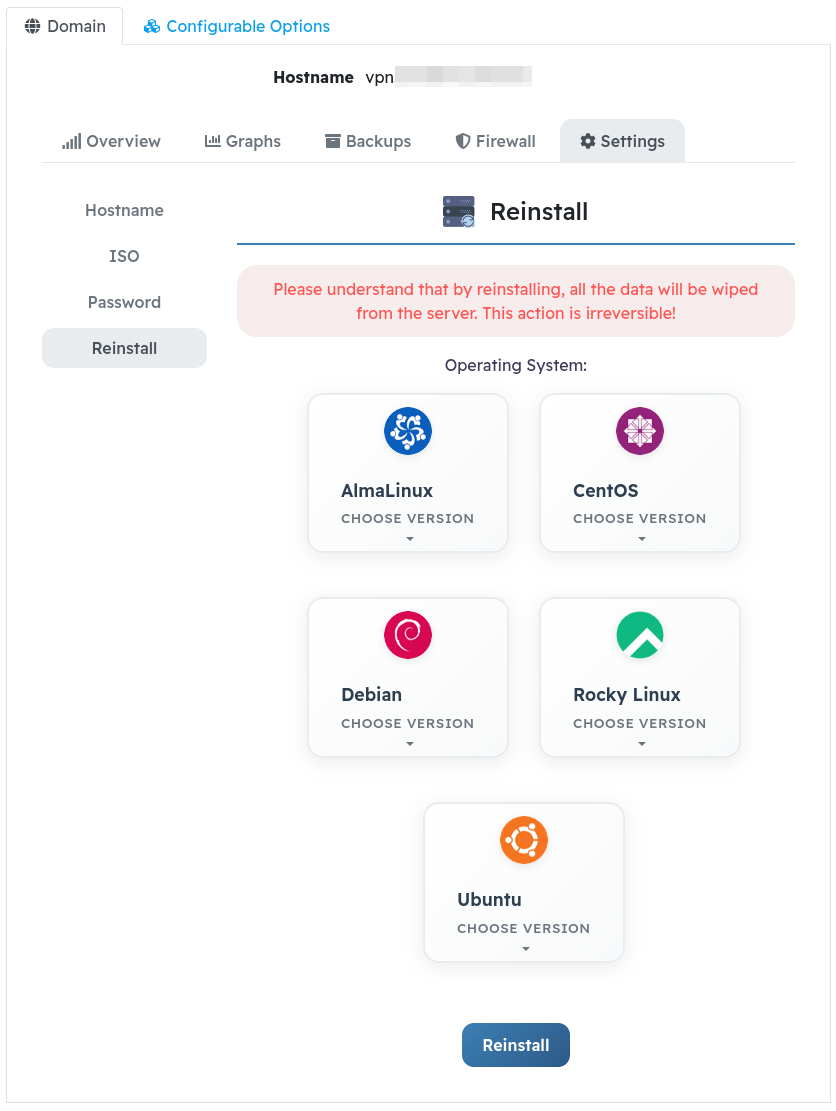

Settings

Changelog

Version 1.4

• Fixed firewall rule duplication bug when adding new rules
• Added validation warning for ANY protocol with specific port numbers
• Redesigned firewall interface with modern card-based layout
• Created standalone Firewall tab for better organization
• Completely redesigned VPS Overview section with:
  • Server Status Card (hostname, IPs, OS, status, uptime, server type)
  • Resource Allocation Card (CPU cores, Memory, Storage, Traffic)
  • Resource Usage Card (RAM, Bandwidth, CPU)
  • Quick Actions Card (Start/Stop, Restart, VNC Console)
• Fixed Quick Actions button functionality
• Completed all language translations (8 languages)
• Enhanced UI styling with gradient backgrounds and smooth animations
• Improved responsive design and layout consistency

Version 1.3

• Enhanced API integration
• Performance improvements
• Bug fixes

Version 1.2

• Custom notifications replace browser popups
• Confirmation dialogs for critical actions
• Multi-language support for all notifications
• Smart post-installation script examples based on OS
• Fixed firewall rules not displaying after creation
• Improved UI styling and animations

Version 1.1

• Basic VPS management
• Backup operations
• Firewall rules
• OS reinstall

Version 1.0

• Initial release

Credits

Originally based on work by andretunes Substantially rewritten and extended by ArkHost

License

MIT License © 2025 ArkHost
